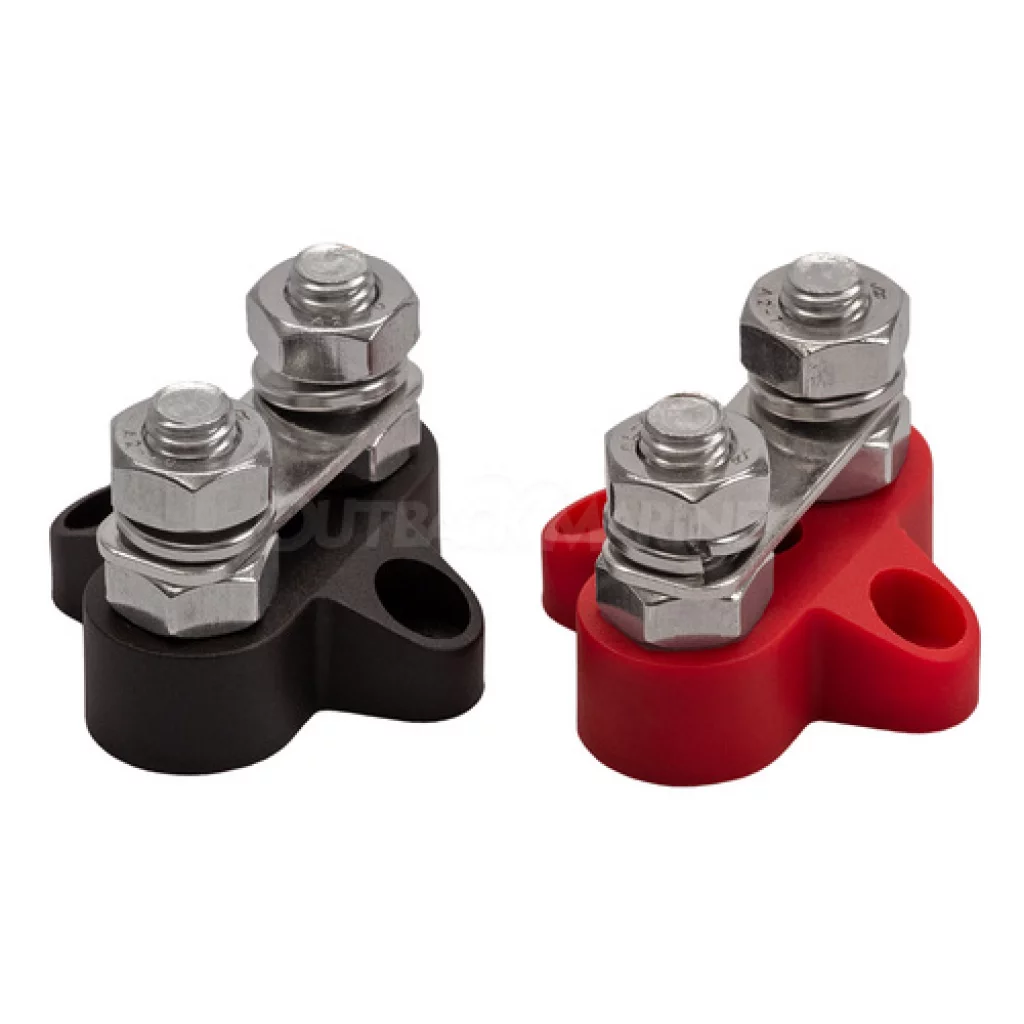

Dual terminal stud M8 (5/16’’)
Max. current 150 A
Max. Voltage 70 VDC
Terminal diameter M8 (5/16 inch)
Terminal height 17 mm / 0.67 inch
Terminal material Stainless steel
Hex nut material Stainless steel
Recommended torque 10 N·m / 90 lbf·inch
Busbar strip material Tin-plated copper (1.0 x 13 mm)
Base material Glass fiber reinforced nylon
Weight 70 g
Dimensions (hxwxd) 45 x 43 x 32 mm
1.8 x 1.7 x 1.3 inch
